import numpy as np
from glasflow import CouplingNSF
import matplotlib.pyplot as plt
import torch
import seaborn as sns
from hierarchical_flow_tools import FlowLikelihood
from nessai.flowsampler import FlowSampler
from nessai.utils import setup_logger
from nessai.plot import corner_plot
from nessai.model import Model
from hierarchical_flow_tools.models import NessaiModel
torch.manual_seed(1729)
np.random.seed(1729)
glasflow is using its own internal version of nflows
Worked example of hierarchical inference with normalising flows¶
We wish to infer population parameters \(\lambda\) from a set of \(N\) gravitational wave observations \(\{d\}\). For each set of data \(d_i\), we obtain posterior samples \(\{\theta_i\}\). Ignoring selection effects, the population posterior is
\[p(\lambda | \{\theta\}) = \prod _ {i = 0} ^ N \frac{1}{S_i} \sum _ {j = 0} ^ {S_i} \frac{\mathcal{L}(\theta_i | \lambda )}{\pi(\theta_i)}.\]
Let’s train a normalising flow to learn the distribution \(\mathcal{L}(\theta_i | \lambda )\).
For a candidate example, we’re going to replace everything with Gaussians. Our population is a multivariate, uncorrelated Gaussian with mean \(\mu\) and a diagonal covariance matrix with sigmas \(\{\sigma_1,...,\sigma_5\}\). Each event is a Gaussian with 0.1 variance and a mean drawn from this population Gaussian.
Training the flow¶
We train the flow over some boundary of means and variances. We’ll say the means are all within [-5, 5] and the variances between [0.5, 2.5]. For each population Gaussian, we draw one posterior sample for one event.
# construct the training and validation data
train_means = np.random.uniform(-5, 5, size=(int(1e6), 5))
train_variances = np.random.uniform(0.5, 2.5, size=(int(1e6), 5))
x_train = np.array([np.random.multivariate_normal(m, np.eye(5)*v) for m,v in zip(train_means, train_variances)])
y_train = np.concatenate([train_means, train_variances], axis=1)
x_scaler = np.vstack([np.mean(x_train,axis=0), np.std(x_train,axis=0)])
y_scaler = np.vstack([np.mean(y_train,axis=0),np.std(y_train,axis=0)])
x_train = (x_train - x_scaler[0]) / x_scaler[1]
y_train = (y_train - y_scaler[0]) / y_scaler[1]
test_means = np.random.uniform(-5, 5, size=(int(1e4), 5))
test_variances = np.random.uniform(0.5, 2.5, size=(int(1e4), 5))
x_val = np.array([np.random.multivariate_normal(m, np.eye(5)*v) for m,v in zip(test_means, test_variances)])
y_val = np.concatenate([test_means, test_variances], axis=1)
x_val = (x_val - x_scaler[0]) / x_scaler[1]
y_val = (y_val - y_scaler[0]) / y_scaler[1]
batch_size = int(1e5)
device = "cuda:0"
flow = CouplingNSF(
n_inputs=5,
n_transforms=4,
n_conditional_inputs=10,
n_neurons=32,
batch_norm_between_transforms=True,
)
flow.to(device)
print(f"Created flow and sent to {device}")
optimiser = torch.optim.Adam(flow.parameters())
Created flow and sent to cuda:0
x_train_tensor = torch.from_numpy(x_train.astype(np.float32))
y_train_tensor = torch.from_numpy(y_train.astype(np.float32))
train_dataset = torch.utils.data.TensorDataset(x_train_tensor, y_train_tensor)
train_loader = torch.utils.data.DataLoader(
train_dataset, batch_size=batch_size, shuffle=True
)
x_val_tensor = torch.from_numpy(x_val.astype(np.float32))
y_val_tensor = torch.from_numpy(y_val.astype(np.float32))
val_dataset = torch.utils.data.TensorDataset(x_val_tensor, y_val_tensor)
val_loader = torch.utils.data.DataLoader(
val_dataset, batch_size=batch_size, shuffle=False
)
We train the flow for 50 epochs - this process could be optimised further, but this works sufficiently well for this example.
epochs = 50
loss = dict(train=[], val=[])
for i in range(epochs):
flow.train()
train_loss = 0.0
for batch in train_loader:
x, y = batch
x = x.to(device)
y = y.to(device)
optimiser.zero_grad()
_loss = -flow.log_prob(x, conditional=y).mean()
_loss.backward()
optimiser.step()
train_loss += _loss.item()
loss["train"].append(train_loss / len(train_loader))
flow.eval()
val_loss = 0.0
for batch in val_loader:
x, y = batch
x = x.to(device)
y = y.to(device)
with torch.no_grad():
_loss = -flow.log_prob(x, conditional=y).mean().item()
val_loss += _loss
loss["val"].append(val_loss / len(val_loader))
if not i % 10:
print(
f"Epoch {i} - train: {loss['train'][-1]:.3f}, val: {loss['val'][-1]:.3f}"
)
flow.eval()
print("Finished training")
Epoch 0 - train: 6.756, val: 12.850
Epoch 10 - train: 2.256, val: 2.251
Epoch 20 - train: 2.205, val: 2.209
Epoch 30 - train: 2.194, val: 2.200
Epoch 40 - train: 2.189, val: 2.197
Finished training

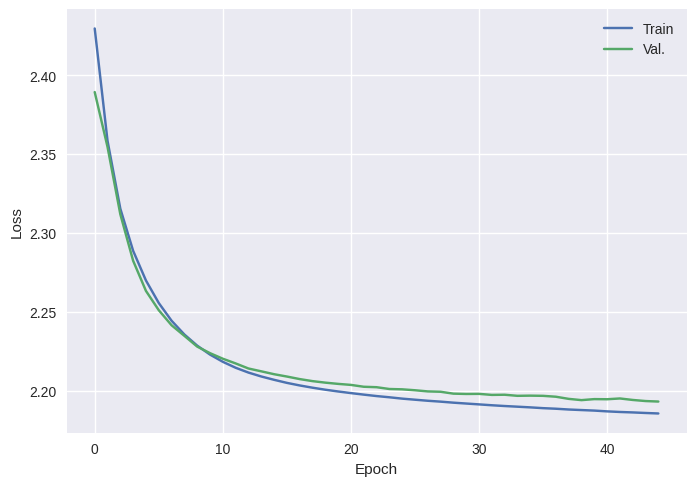

with plt.style.context("seaborn"):
plt.plot(loss["train"][5:], label="Train")
plt.plot(loss["val"][5:], label="Val.")
plt.xlabel("Epoch")
plt.ylabel("Loss")
plt.legend()
plt.show()
Hierarchical inference¶
With our trained flow in hand, we’re ready to do some hierarchical
inference. We’ll use the nessai nested sampler to infer our 10
hyperparameters, using the flow as a proxy for the likelihood as
described earlier.
Our “data” will consist of 10 events with 1000 posterior samples each, where each event mean has been drawn from the population and the variance is 0.05. For ease, we’ll just use the first events of our validation set. Feel free to change these numbers and examine the resulting change in the parameter estimation performance!
event_mean = test_means[0]
event_variance = test_variances[0]
noise_variance = 0.05
event_samples = np.array(
[np.random.multivariate_normal(
np.random.multivariate_normal(
np.random.multivariate_normal(event_mean, np.eye(5)*event_variance), # determine the location of the event's true parameters
np.eye(5)*noise_variance), # scatter the observed maximum likelihood location from the truth according to the posterior width
np.eye(5)*noise_variance,size=1000) # draw 1000 "posterior samples" from this perturbed distribution
for i in range(10)] # do this for all 10 events
)
event_samples_rescaled = (event_samples - x_scaler[0])/x_scaler[1] # rescale these samples prior to inference
# setup for nessai parameter estimation: we need to name the parameters and provide some prior bounds.
names = [f"mu_{x}" for x in range(1,6)] + [f"sigma_{x}" for x in range(1,6)]
bounds = dict()
for k, n in enumerate(names):
bounds[n] = [-5, 5] if k < 5 else [0.5,2.5]
torch_yscaler = torch.as_tensor(y_scaler, device=device).float()
flike = FlowLikelihood(
flow, device,
data=torch.as_tensor(event_samples_rescaled, device=device).float(),
batch_size=100,
conditional_rescaling_function=lambda x: (x - torch_yscaler[0]) / torch_yscaler[1])
model_fast = NessaiModel(names, bounds, flow_likelihood=flike)
output_fast = './outdir_norm_fast'
setup_logger(output=output_fast, log_level='CRITICAL')
fs_fast = FlowSampler(model_fast, output=output_fast, resume=False, seed=1729, nlive=5000)
fs_fast.run()
Drawing live points: 100%|██████████| 5000/5000 [00:07<00:00, 629.89it/s]
01-30 17:01 nessai.samplers.nestedsampler CRITICAL: Starting nested sampling loop
01-30 17:11 nessai.samplers.base CRITICAL: Checkpointing nested sampling
01-30 17:12 nessai.samplers.nestedsampler CRITICAL: Final evidence: -37.947 +/- 0.046
01-30 17:12 nessai.samplers.nestedsampler CRITICAL: Information: 10.63
01-30 17:12 nessai.samplers.nestedsampler CRITICAL: Final p-value for the insertion indices is less than 0.05, this could be an indication of problems during sampling. Consider checking the diagnostic plots.
01-30 17:12 nessai.samplers.base CRITICAL: Checkpointing nested sampling
with plt.style.context("seaborn"):
truths = event_mean.tolist() + event_variance.tolist()
corner_fig = corner_plot(
fs_fast.posterior_samples,
include=names,
truths=truths,
labels=[rf"$\mu_{x}$" for x in range(1,6)] + [rf"$\sigma^2_{x}$" for x in range(1,6)],
)
corner_fig.savefig(output_fast+'/posterior_w_truth.png')
plt.show()
We have an answer and it looks reasonable. To see if it’s trustworthy we can directly perform the hierarchical inference in this case and see if the results are consistent…
Analytic Hierarchical Inference (comparison)¶
#nessai model class
class HierarchicalModel(Model):
"""A simple Gaussian likelihood."""
def __init__(self, names, bounds, data):
# Names of parameters to sample
self.names = names
# Prior bounds for each parameter
self.bounds = bounds
self.data = torch.as_tensor(data).float().to(device)#.reshape(-1,data.shape[-1])
self.nsamp = data.shape[1]
self.nevents = data.shape[0]
self._vectorised_likelihood = False #bad
def unpack_live_point(self, x):
start = np.array([x[n] for n in self.names]).T
if start.ndim == 1:
start = start[None,:]
return torch.Tensor(start).float().to(device)
def log_prior(self, x):
"""
Returns log of prior given a live point assuming uniform
priors on each parameter.
"""
# Check if values are in bounds, returns True/False
# Then take the log to get 0/-inf and make sure the dtype is float
log_p = np.log(self.in_bounds(x), dtype="float").astype(np.float32)
# Iterate through each parameter (x and y)
# since the live points are a structured array we can
# get each value using just the name
for n in self.names:
log_p -= np.log(self.bounds[n][1] - self.bounds[n][0])
return log_p
def log_likelihood(self, x):
try:
if len(x[self.names[0]]) > 1:
raise NotImplementedError
except TypeError:
pass
conditional = self.unpack_live_point(x)
log_prob = 0
for event_data in self.data:
with torch.no_grad():
diff = (event_data - conditional[:,:5])
detcov = torch.prod(conditional[:,5:],dim=-1)
probs = -0.5*(diff**2 * conditional[:,5:]**-1).sum(axis=-1) - 0.5*torch.log(detcov) - 5/2 * np.log(2*np.pi)
log_prob += (torch.logsumexp(probs,dim=-1).cpu().numpy() - np.log(self.nsamp))
return log_prob
model2 = HierarchicalModel(names, bounds, data=event_samples)
output2 = './outdir_norm_hierarchical'
setup_logger(output=output2, log_level='WARNING')
fs2 = FlowSampler(model2, output=output2, resume=False, seed=1729, nlive=5000)
fs2.run()
01-30 16:29 nessai.model WARNING : Multiprocessing pool has already been configured.
01-30 16:29 nessai.samplers.nestedsampler WARNING : Proposal will only train when empty
Drawing live points: 100%|██████████| 5000/5000 [00:19<00:00, 255.92it/s]
01-30 16:29 nessai.samplers.nestedsampler CRITICAL: Starting nested sampling loop
01-30 16:30 nessai.samplers.nestedsampler WARNING : it: 5000: Rolling KS test: D=0.01, p-value=0.3654
01-30 16:30 nessai.samplers.nestedsampler WARNING : it: 5000: n eval: 15000 H: 5.16 dZ: 269.147 logZ: -358.940 +/- 0.032 logLmax: -88.79
01-30 16:31 nessai.samplers.nestedsampler WARNING : it: 10000: Rolling KS test: D=0.0032, p-value=0.9007
01-30 16:31 nessai.samplers.nestedsampler WARNING : it: 10000: n eval: 40000 H: 5.38 dZ: 150.803 logZ: -241.596 +/- 0.033 logLmax: -88.79
01-30 16:31 nessai.samplers.nestedsampler WARNING : Switching to FlowProposal
01-30 16:32 nessai.samplers.nestedsampler WARNING : it: 15000: Rolling KS test: D=0.0108, p-value=0.3093
01-30 16:32 nessai.samplers.nestedsampler WARNING : it: 15000: n eval: 59542 H: 5.82 dZ: 92.078 logZ: -180.633 +/- 0.034 logLmax: -85.55
01-30 16:33 nessai.samplers.nestedsampler WARNING : it: 20000: Rolling KS test: D=0.0132, p-value=0.1736
01-30 16:33 nessai.samplers.nestedsampler WARNING : it: 20000: n eval: 67335 H: 6.25 dZ: 57.646 logZ: -146.246 +/- 0.035 logLmax: -84.60
01-30 16:33 nessai.evidence WARNING : NS integrator received non-monotonic logL.-137.01409 -> -137.01409
01-30 16:33 nessai.evidence WARNING : NS integrator received non-monotonic logL.-123.37438 -> -123.37438
01-30 16:34 nessai.samplers.nestedsampler WARNING : it: 25000: Rolling KS test: D=0.007, p-value=0.6098
01-30 16:34 nessai.samplers.nestedsampler WARNING : it: 25000: n eval: 82628 H: 6.71 dZ: 38.665 logZ: -126.157 +/- 0.037 logLmax: -82.49
01-30 16:34 nessai.samplers.nestedsampler WARNING : it: 30000: Rolling KS test: D=0.0044, p-value=0.8216
01-30 16:35 nessai.samplers.nestedsampler WARNING : it: 30000: n eval: 90666 H: 7.17 dZ: 25.565 logZ: -114.056 +/- 0.038 logLmax: -82.49
01-30 16:35 nessai.samplers.nestedsampler WARNING : it: 35000: Rolling KS test: D=0.009, p-value=0.4422
01-30 16:36 nessai.samplers.nestedsampler WARNING : it: 35000: n eval: 106992 H: 7.66 dZ: 17.960 logZ: -106.791 +/- 0.039 logLmax: -81.83
01-30 16:36 nessai.evidence WARNING : NS integrator received non-monotonic logL.-94.78463 -> -94.78463
01-30 16:36 nessai.evidence WARNING : NS integrator received non-monotonic logL.-93.53537 -> -93.53537
01-30 16:36 nessai.samplers.nestedsampler WARNING : it: 40000: Rolling KS test: D=0.0082, p-value=0.5077
01-30 16:36 nessai.samplers.nestedsampler WARNING : it: 40000: n eval: 115465 H: 8.14 dZ: 12.401 logZ: -102.212 +/- 0.040 logLmax: -81.81
01-30 16:37 nessai.samplers.nestedsampler WARNING : it: 45000: Rolling KS test: D=0.0164, p-value=0.06717
01-30 16:37 nessai.samplers.nestedsampler WARNING : it: 45000: n eval: 132541 H: 8.57 dZ: 8.826 logZ: -99.433 +/- 0.041 logLmax: -81.61
01-30 16:38 nessai.samplers.nestedsampler WARNING : it: 50000: Rolling KS test: D=0.0026, p-value=0.933
01-30 16:38 nessai.samplers.nestedsampler WARNING : it: 50000: n eval: 149787 H: 8.99 dZ: 6.529 logZ: -97.717 +/- 0.042 logLmax: -81.19
01-30 16:38 nessai.evidence WARNING : NS integrator received non-monotonic logL.-87.02088 -> -87.02088
01-30 16:38 nessai.evidence WARNING : NS integrator received non-monotonic logL.-86.95438 -> -86.95438
01-30 16:39 nessai.evidence WARNING : NS integrator received non-monotonic logL.-86.04286 -> -86.04286
01-30 16:39 nessai.evidence WARNING : NS integrator received non-monotonic logL.-85.98847 -> -85.98847
01-30 16:39 nessai.evidence WARNING : NS integrator received non-monotonic logL.-85.84612 -> -85.84612
01-30 16:39 nessai.samplers.nestedsampler WARNING : it: 55000: Rolling KS test: D=0.0144, p-value=0.1245
01-30 16:39 nessai.samplers.nestedsampler WARNING : it: 55000: n eval: 158741 H: 9.40 dZ: 4.608 logZ: -96.629 +/- 0.043 logLmax: -81.03
01-30 16:39 nessai.samplers.base CRITICAL: Checkpointing nested sampling
01-30 16:39 nessai.evidence WARNING : NS integrator received non-monotonic logL.-85.53402 -> -85.53402
01-30 16:39 nessai.evidence WARNING : NS integrator received non-monotonic logL.-84.97919 -> -84.97919
01-30 16:39 nessai.evidence WARNING : NS integrator received non-monotonic logL.-84.92502 -> -84.92502
01-30 16:40 nessai.samplers.nestedsampler WARNING : it: 60000: Rolling KS test: D=0.012, p-value=0.235
01-30 16:40 nessai.samplers.nestedsampler WARNING : it: 60000: n eval: 176425 H: 9.75 dZ: 3.064 logZ: -95.951 +/- 0.044 logLmax: -80.93
01-30 16:40 nessai.evidence WARNING : NS integrator received non-monotonic logL.-84.37653 -> -84.37653
01-30 16:40 nessai.evidence WARNING : NS integrator received non-monotonic logL.-84.34099 -> -84.34099
01-30 16:40 nessai.evidence WARNING : NS integrator received non-monotonic logL.-84.25258 -> -84.25258
01-30 16:40 nessai.evidence WARNING : NS integrator received non-monotonic logL.-83.79962 -> -83.79962
01-30 16:41 nessai.samplers.nestedsampler WARNING : it: 65000: Rolling KS test: D=0.0152, p-value=0.09822
01-30 16:41 nessai.samplers.nestedsampler WARNING : it: 65000: n eval: 195077 H: 10.04 dZ: 2.059 logZ: -95.537 +/- 0.045 logLmax: -80.62
01-30 16:41 nessai.evidence WARNING : NS integrator received non-monotonic logL.-83.64220 -> -83.64220
01-30 16:41 nessai.evidence WARNING : NS integrator received non-monotonic logL.-83.61098 -> -83.61098
01-30 16:41 nessai.evidence WARNING : NS integrator received non-monotonic logL.-83.35493 -> -83.35493
01-30 16:41 nessai.evidence WARNING : NS integrator received non-monotonic logL.-83.28922 -> -83.28922
01-30 16:42 nessai.evidence WARNING : NS integrator received non-monotonic logL.-83.27466 -> -83.27466
01-30 16:42 nessai.evidence WARNING : NS integrator received non-monotonic logL.-83.23347 -> -83.23347
01-30 16:42 nessai.evidence WARNING : NS integrator received non-monotonic logL.-83.23044 -> -83.23044
01-30 16:42 nessai.evidence WARNING : NS integrator received non-monotonic logL.-83.20265 -> -83.20265
01-30 16:42 nessai.evidence WARNING : NS integrator received non-monotonic logL.-83.12969 -> -83.12969
01-30 16:42 nessai.evidence WARNING : NS integrator received non-monotonic logL.-83.10516 -> -83.10516
01-30 16:42 nessai.evidence WARNING : NS integrator received non-monotonic logL.-82.98978 -> -82.98978
01-30 16:42 nessai.samplers.nestedsampler WARNING : it: 70000: Rolling KS test: D=0.0232, p-value=0.004524
01-30 16:42 nessai.samplers.nestedsampler WARNING : it: 70000: n eval: 204212 H: 10.26 dZ: 1.285 logZ: -95.291 +/- 0.045 logLmax: -80.33
01-30 16:42 nessai.evidence WARNING : NS integrator received non-monotonic logL.-82.95760 -> -82.95760
01-30 16:42 nessai.evidence WARNING : NS integrator received non-monotonic logL.-82.95578 -> -82.95578
01-30 16:42 nessai.evidence WARNING : NS integrator received non-monotonic logL.-82.75227 -> -82.75227
01-30 16:42 nessai.evidence WARNING : NS integrator received non-monotonic logL.-82.73243 -> -82.73243
01-30 16:42 nessai.evidence WARNING : NS integrator received non-monotonic logL.-82.60383 -> -82.60383
01-30 16:43 nessai.evidence WARNING : NS integrator received non-monotonic logL.-82.49562 -> -82.49562
01-30 16:43 nessai.evidence WARNING : NS integrator received non-monotonic logL.-82.41852 -> -82.41852
01-30 16:43 nessai.samplers.nestedsampler WARNING : it: 75000: Rolling KS test: D=0.0164, p-value=0.06717
01-30 16:43 nessai.samplers.nestedsampler WARNING : it: 75000: n eval: 222372 H: 10.43 dZ: 0.657 logZ: -95.148 +/- 0.046 logLmax: -80.22
01-30 16:43 nessai.evidence WARNING : NS integrator received non-monotonic logL.-82.37474 -> -82.37474
01-30 16:43 nessai.evidence WARNING : NS integrator received non-monotonic logL.-82.26591 -> -82.26591
01-30 16:44 nessai.evidence WARNING : NS integrator received non-monotonic logL.-82.17277 -> -82.17277
01-30 16:44 nessai.evidence WARNING : NS integrator received non-monotonic logL.-82.11172 -> -82.11172
01-30 16:44 nessai.evidence WARNING : NS integrator received non-monotonic logL.-82.10704 -> -82.10704
01-30 16:44 nessai.evidence WARNING : NS integrator received non-monotonic logL.-82.06967 -> -82.06967
01-30 16:44 nessai.evidence WARNING : NS integrator received non-monotonic logL.-82.02911 -> -82.02911
01-30 16:44 nessai.evidence WARNING : NS integrator received non-monotonic logL.-81.97727 -> -81.97727
01-30 16:44 nessai.evidence WARNING : NS integrator received non-monotonic logL.-81.96682 -> -81.96682
01-30 16:44 nessai.evidence WARNING : NS integrator received non-monotonic logL.-81.96074 -> -81.96074
01-30 16:44 nessai.samplers.nestedsampler WARNING : it: 80000: Rolling KS test: D=0.0152, p-value=0.09822
01-30 16:44 nessai.samplers.nestedsampler WARNING : it: 80000: n eval: 239922 H: 10.55 dZ: 0.274 logZ: -95.068 +/- 0.046 logLmax: -80.22
01-30 16:44 nessai.evidence WARNING : NS integrator received non-monotonic logL.-81.83495 -> -81.83495
01-30 16:44 nessai.evidence WARNING : NS integrator received non-monotonic logL.-81.83467 -> -81.83467
01-30 16:44 nessai.evidence WARNING : NS integrator received non-monotonic logL.-81.76911 -> -81.76911
01-30 16:44 nessai.evidence WARNING : NS integrator received non-monotonic logL.-81.76297 -> -81.76297
01-30 16:44 nessai.evidence WARNING : NS integrator received non-monotonic logL.-81.75264 -> -81.75264
01-30 16:45 nessai.evidence WARNING : NS integrator received non-monotonic logL.-81.72926 -> -81.72926
01-30 16:45 nessai.evidence WARNING : NS integrator received non-monotonic logL.-81.72684 -> -81.72684
01-30 16:45 nessai.evidence WARNING : NS integrator received non-monotonic logL.-81.69954 -> -81.69954
01-30 16:45 nessai.evidence WARNING : NS integrator received non-monotonic logL.-81.68073 -> -81.68073
01-30 16:45 nessai.evidence WARNING : NS integrator received non-monotonic logL.-81.62568 -> -81.62568
01-30 16:45 nessai.evidence WARNING : NS integrator received non-monotonic logL.-81.62022 -> -81.62022
01-30 16:45 nessai.evidence WARNING : NS integrator received non-monotonic logL.-81.61221 -> -81.61221
01-30 16:45 nessai.evidence WARNING : NS integrator received non-monotonic logL.-81.60089 -> -81.60089
01-30 16:45 nessai.evidence WARNING : NS integrator received non-monotonic logL.-81.58610 -> -81.58610
01-30 16:45 nessai.evidence WARNING : NS integrator received non-monotonic logL.-81.57385 -> -81.57385
01-30 16:45 nessai.samplers.nestedsampler WARNING : it: 85000: Rolling KS test: D=0.0108, p-value=0.3093
01-30 16:45 nessai.samplers.nestedsampler WARNING : it: 85000: n eval: 248631 H: 10.62 dZ: 0.106 logZ: -95.027 +/- 0.046 logLmax: -80.22
01-30 16:45 nessai.evidence WARNING : NS integrator received non-monotonic logL.-81.56876 -> -81.56876
01-30 16:45 nessai.evidence WARNING : NS integrator received non-monotonic logL.-81.55365 -> -81.55365
01-30 16:45 nessai.evidence WARNING : NS integrator received non-monotonic logL.-81.51034 -> -81.51034
01-30 16:45 nessai.evidence WARNING : NS integrator received non-monotonic logL.-81.48447 -> -81.48447
01-30 16:45 nessai.evidence WARNING : NS integrator received non-monotonic logL.-81.40493 -> -81.40493
01-30 16:45 nessai.evidence WARNING : NS integrator received non-monotonic logL.-81.29644 -> -81.29644
01-30 16:45 nessai.evidence WARNING : NS integrator received non-monotonic logL.-81.14983 -> -81.14983
01-30 16:45 nessai.samplers.nestedsampler CRITICAL: Final evidence: -94.989 +/- 0.046
01-30 16:45 nessai.samplers.nestedsampler CRITICAL: Information: 10.70
01-30 16:45 nessai.samplers.nestedsampler WARNING : Final KS test: D=0.004896, p-value=0.01672
01-30 16:45 nessai.samplers.nestedsampler CRITICAL: Final p-value for the insertion indices is less than 0.05, this could be an indication of problems during sampling. Consider checking the diagnostic plots.
01-30 16:45 nessai.samplers.base CRITICAL: Checkpointing nested sampling
with plt.style.context("seaborn"):
pal = sns.color_palette(palette="colorblind").as_hex()
truths = event_mean.tolist() + event_variance.tolist()
corner_fig = corner_plot(
fs2.posterior_samples,
color=pal[1],
include=names,
truths=truths,
labels=[rf"$\mu_{x}$" for x in range(1,6)] + [rf"$\sigma^2_{x}$" for x in range(1,6)],
hist_kwargs=dict(density=True,color=pal[1]),
plot_density=False,
plot_datapoints=False,
fill_contours=False,
levels = (1 - np.exp(-0.5), 1-np.exp(-2))
)
corner_fig2 = corner_plot(
fs_fast.posterior_samples,
color=pal[0],
include=names,
truths=truths,
labels=[rf"$\mu_{x}$" for x in range(1,6)] + [rf"$\sigma^2_{x}$" for x in range(1,6)],
fig = corner_fig,
hist_kwargs=dict(density=True,color=pal[0]),
plot_density=False,
plot_datapoints=False,
fill_contours=False,
levels = (1 - np.exp(-0.5), 1-np.exp(-2))
)
import matplotlib.lines as mlines
blue = mlines.Line2D([],[], color=pal[0], label='Hierarchical Inference')
orange = mlines.Line2D([],[], color=pal[1], label='Normalising Flow')
corner_fig2.legend(handles=[blue, orange], loc=(0.37,0.85),fontsize=32, frameon=False)
corner_fig2.savefig('joint_posterior_w_truth.png')
plt.show()
